Wiring diagrams for longer run lengths

To power more than one roll of tape, we recommend using one of the following methods of wiring:

1) Run two power leads to feed into the controller (RGB/TW) or power supply (Single Color).

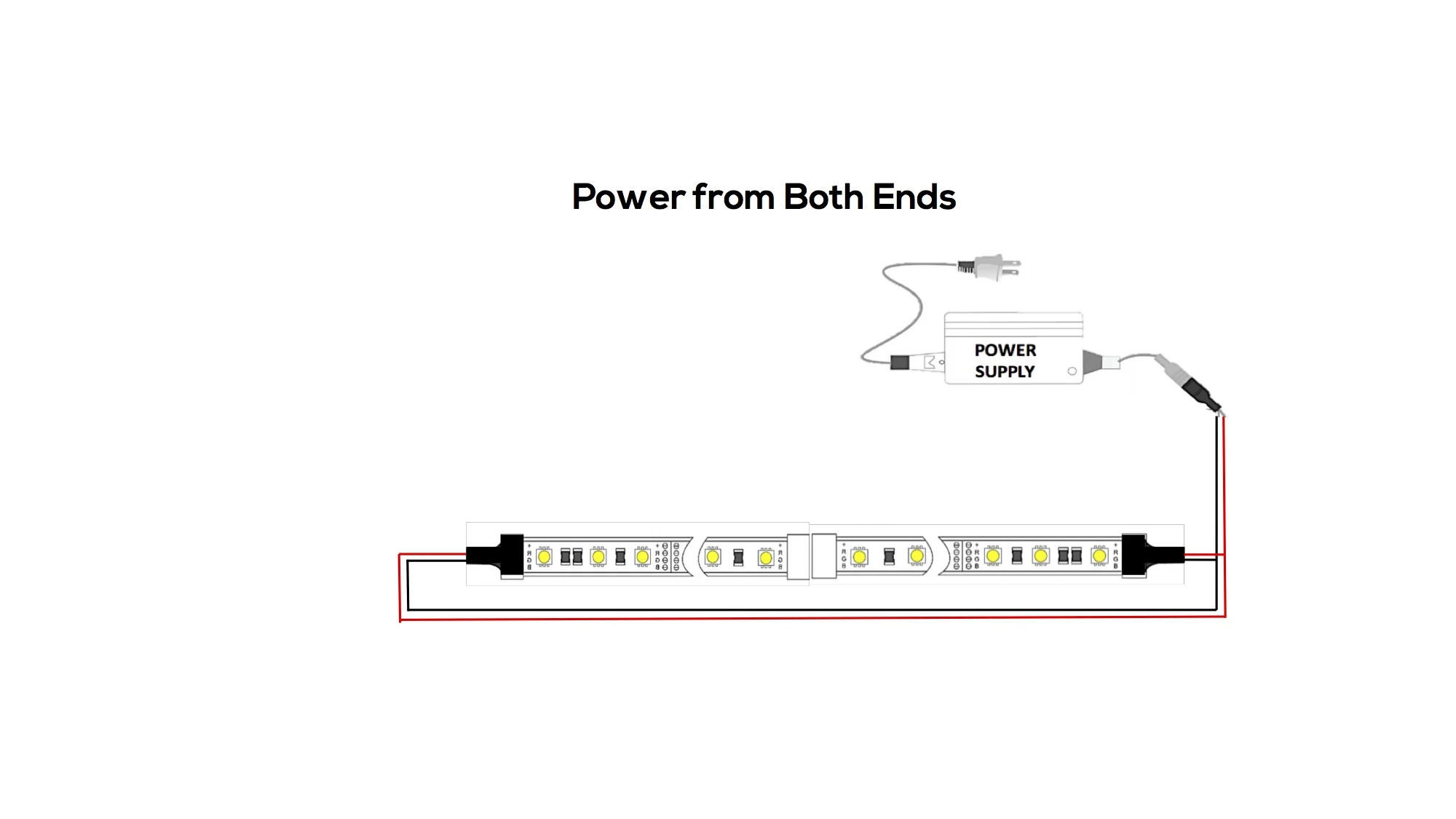

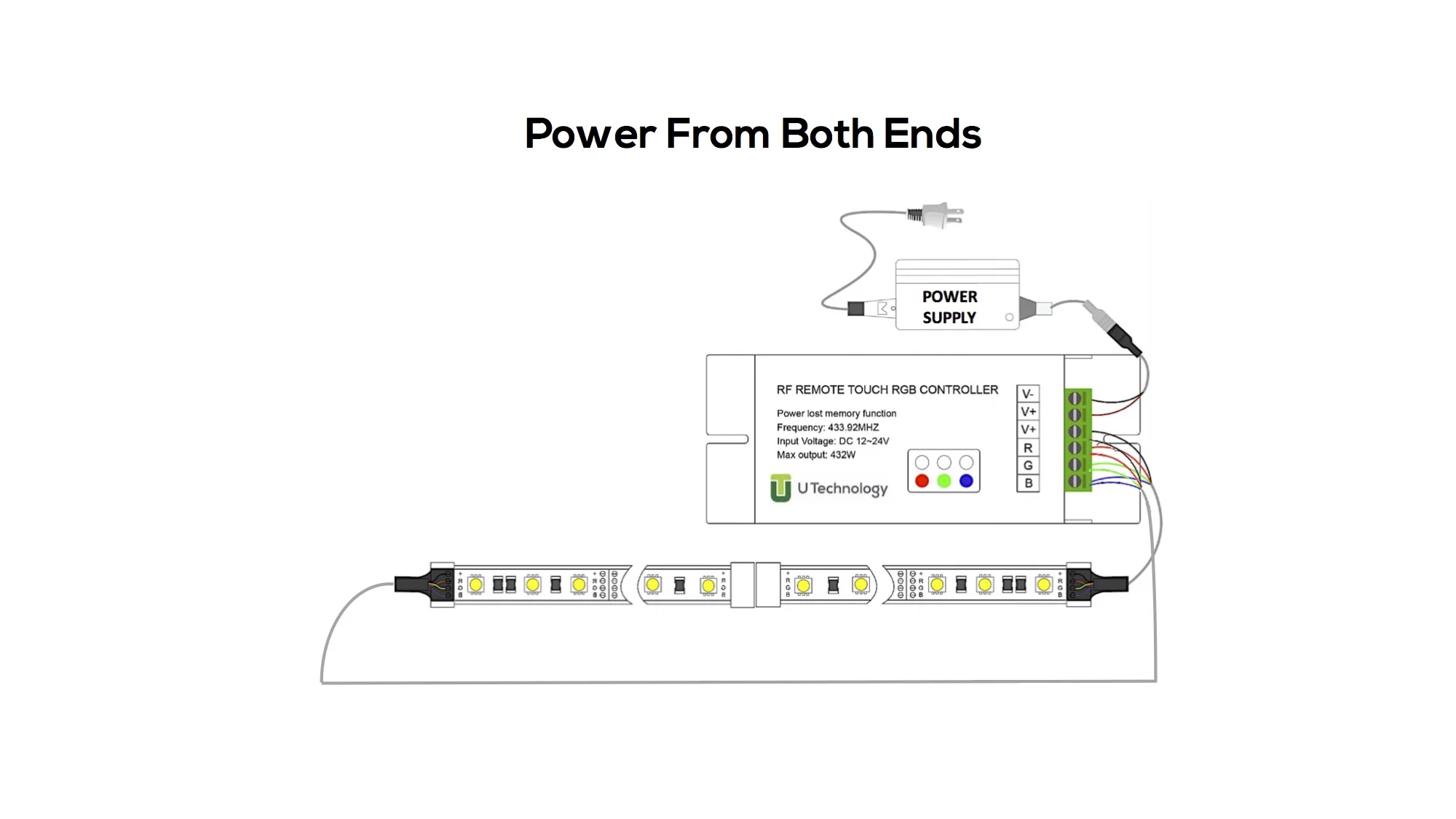

2) Power the run length from both ends.

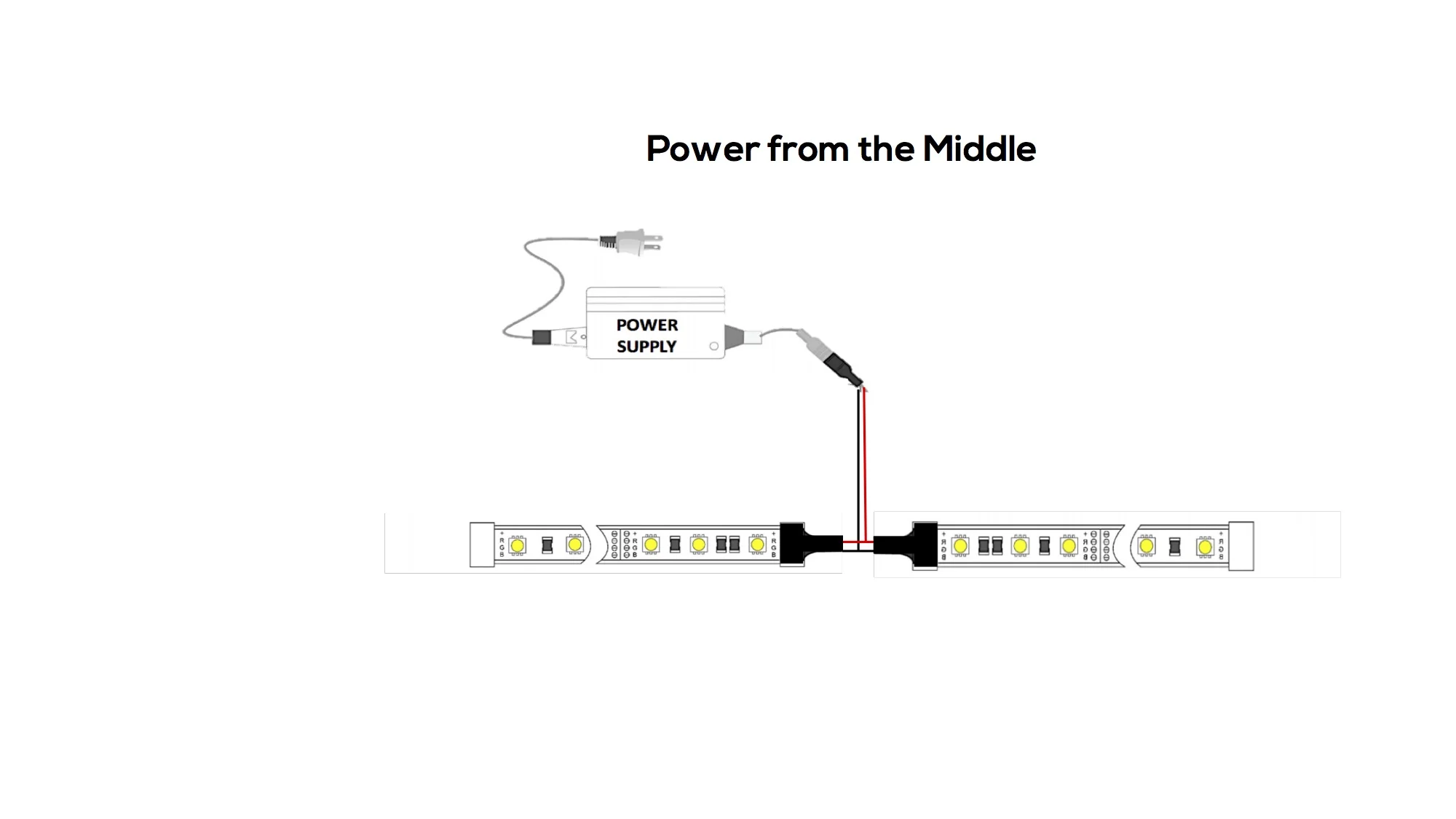

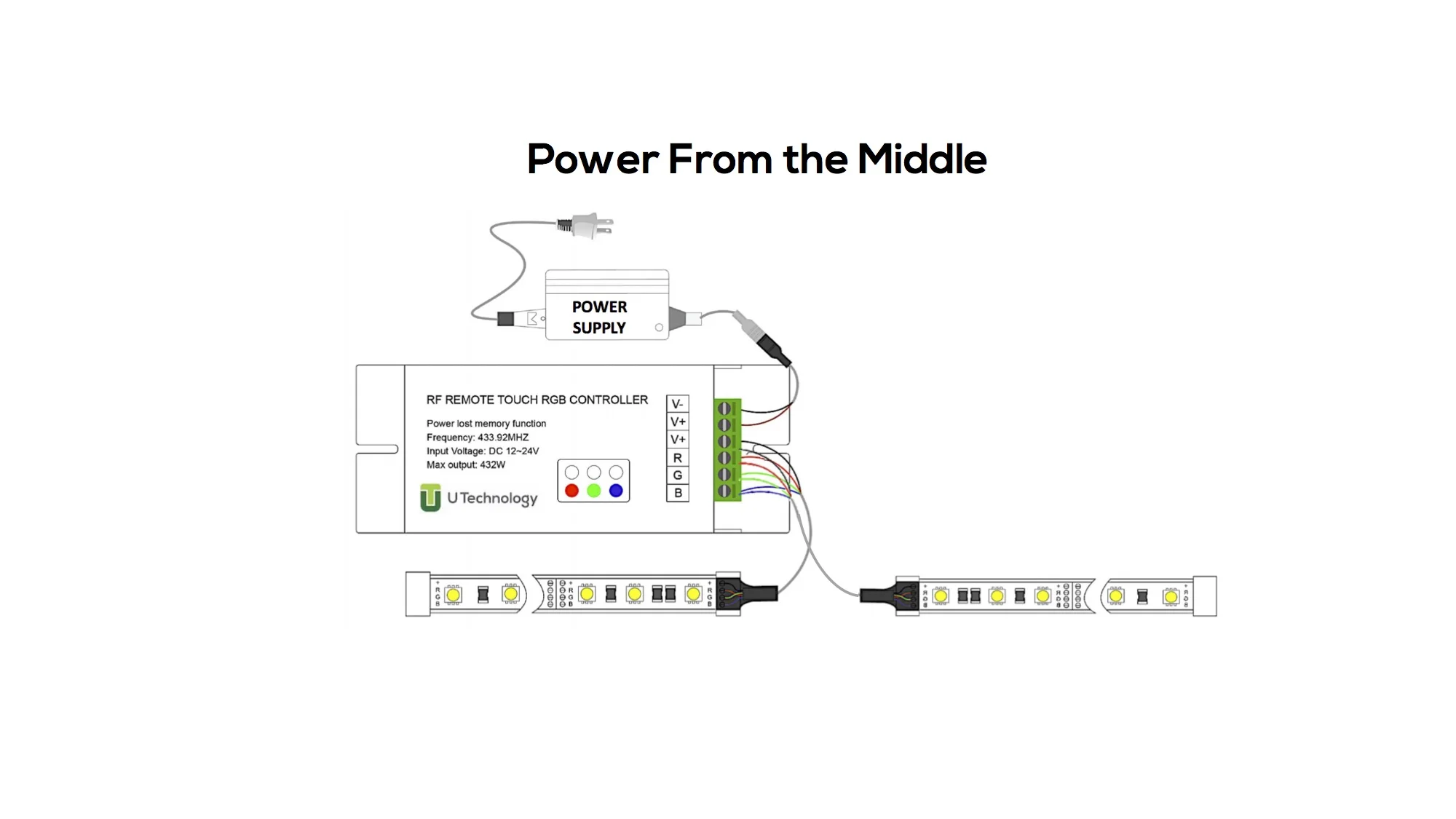

3) Split the power feed and splice it to both runs from the middle. For more than two runs of tape, repeat the process.

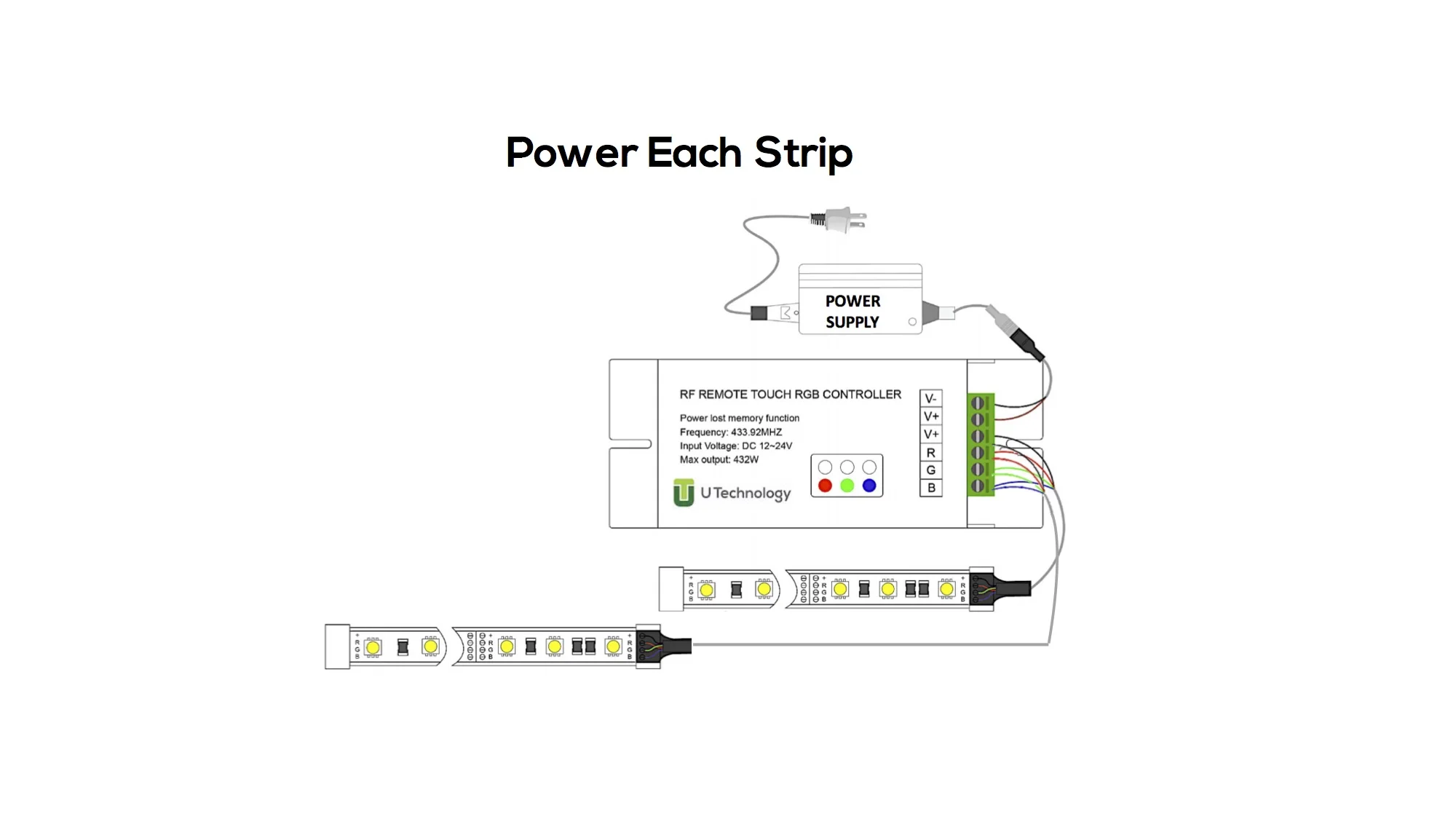

RGB Installations

Single Color Installations

Single Color Wiring 1.jpg

All products must be installed by qualified professionals, adhering to all codes and regulations.
